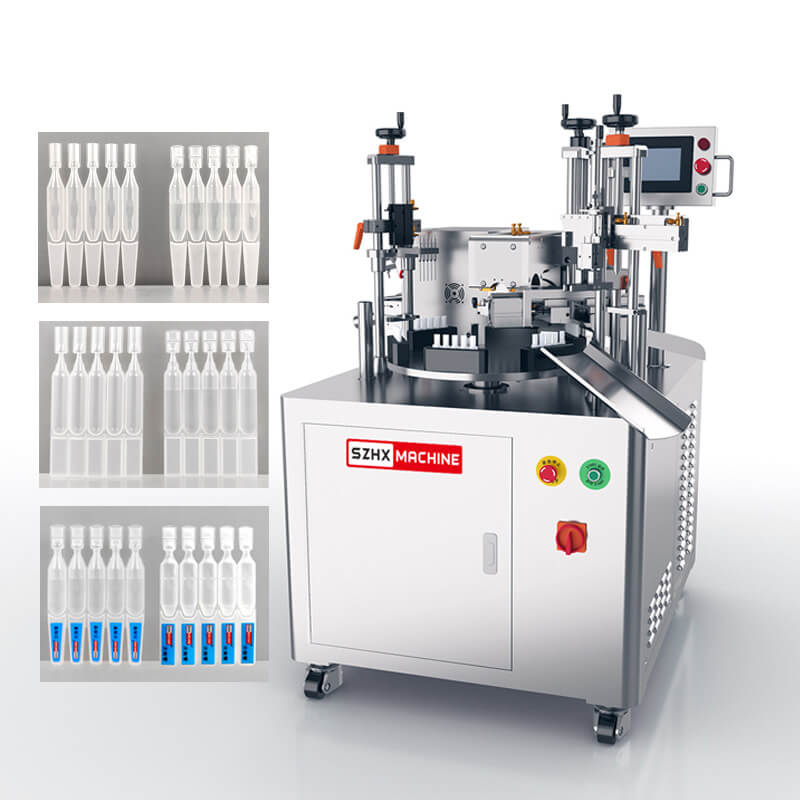

HX-005S1 Serum/Eyedrops Plastic Ampoule Filling and Sealing Machine
Consult now to get discount
- High quality
- Fast delivery
- After-sales guarantee
HX-005S1 semi-automatic Plastic ampoule tube filling and sealing machine is a high-quality, high-performance liquid/paste filling and sealing packaging machine. The machine features manual tube placement, automatic color mark detection, automatic filling, automatic sealing, automatic tail cutting, and automatic finished product ejection. Utilizing PLC control, a human-machine interface, and photoelectric automatic positioning and tracking, the machine is simple to operate, runs stably, and boasts high production efficiency, making it the preferred equipment in the packaging industry.
Features of the HX-005S1
- Machine is specially designed for plastic ampouple tubes, suitable for mass production of plastic ampouple tubes
- * Manually tube feeding, automatic filling, sealing, end trimming and auto take out.
- * Adopts ultrasonic sealing technology, no need warm up time, more stable and neat sealing, no distortion andlow rejectrate less than 1%.
- *Independent R&D for digital ultrasonic automatic tracking electrical control box, no need manual adjust thefrequency, with power auto compensation function, avoiding the reduction of power after long time use.
- *Could freely adjust the power based on tube material and size, stable and minimum the fault rate, extend the life spanthan the normal electrical box.
- * PLC with touch screen control system, providing friendly operation experience
- *Made of 304 stainless Steel, acid and alkali resistance, corrosion resistance
- * Standard equipped with ceramic pump filling system, high accuracy filing, and suitable for liguid filling
- *No tube, no fil, no tube, no sealfunction,reducing the machine and mould loss
- *Cam indexing system could position precisely for six working stations.
Applications for the HX-005S1
Widely used for cosmetics, pharmaceutical, chemical and food plastic ampouple tubes filing and sealing
Specially for :single-use serum, single-use essence, unit dose Daily Essence, single use daily use serum. one day serum; Single-Use Vials, single-use ampoule; Ophthalmic Lubricant Drops ;Sterile Eyewash）,Sterile Eyewash
Floor plan layout
Operation process
Machine details
Main technical parameters
| Model | HX-005S1 | Frequency | 20KHz |
| Power | 2.6KW | Power supply | AC220V 1PH 50/60hz |
| Filling range | 0.25-2.5 ml /revolution | Filling accuracy | ±0.02g |
| Capacity | 13-15strip/min | Radius of Sealing | 50-135mm |
| Height of sealing | 50-150mm | Air pressure | 0.6MPa |
| Dimension | L1100*W1150*H1550mm | Weight | 300Kgs |
Main Parts Details
| Ultrasonic system | Automatic frequency tracing |
| Benchmarking electric eye | Panasonic, Japan |
| PLC/Touch Panel | Coolmay, CN |
| Electric relay | Omron, Japan |
| Inductive switch | SICK, Germany |
| Air cylinder | AirTAC, China Taiwan |
| Solenoid valve | AirTAC，China Taiwan |
| Motor | Zhongdamotor CN |
| Partitioner | JOUDER，China Taiwan |
